Product Description
| Generator Set Specification |
| Model | A-QC11S |
| Max. Power | kVA | 11 |
| kW | 9 |
| Rate Power | kVA | 10 |
| kW | 8 |
| Frequency | Hz | 50 |
| Rate Voltage | V | 400/230 |
| Rate Current | A | 14.4 |
| Dimension For Open-type Genset | mm | 1300 X 720 X 1050 |
| Weight For Open-type Genset | kg | 455 |
| Dimension For Soundproof Genset | mm | 1850 X 850 X 1100 |
| Weight For Soundproof Generator | kg | 750 |
| Noise Level at 7 Meters | dBA | 70 |
| Fuel Tank Capacity | Liters | 35 |
| Battery | One of Free Maintenance Battery |
| Engine Specification |
| Engine Manufacturer | Anhui Quanchai Engine Co., Ltd. |
| Engine Brand | Quanchai |
| Engine Model | QC385D |
| No. of Cylinder | 3 Cylinder in line |
| Aspiration | Naturally Aspirated |
| Governor | Mechanical |
| Engine Max. Output Power | kW | 11 |
| Displacement | L | 1.500 |
| Starting Voltage | V | 12 |
| Bore | mm | 85 |
| Stroke | mm | 90 |
| Lubrication Oil Capacity | L | 6 |
| Compression Ratio | 18 : 1 |
| Intake Air Flow | M3/Min | 1.5 |
| Fuel Consumption at 100% Load | L | 3.4 |
| Alternator Specification |
| Alternator Manufacturer | Fuzhou Hosem Power Co., Ltd. |
| Alternator Model | ASF164B |
| Alternator Brand | Hosem |
| Rate Output | kVA | 10 |
| Frequency | Hz | 50Hz |
| Altitude | M | ≤1000 |
| Insulation | Class H |
| Voltage Regulation | SX460 |
| Protection Grade | IP23 |
| Working Temperature without Output Decrease | ≤40℃ |
| Phase | 3 Phase |
| Temperature Rise | 125 Degree Celsius |
| Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional |
Product Features
1. The Quanchai diesel engine offers outstanding performance, durability, and fuel efficiency.

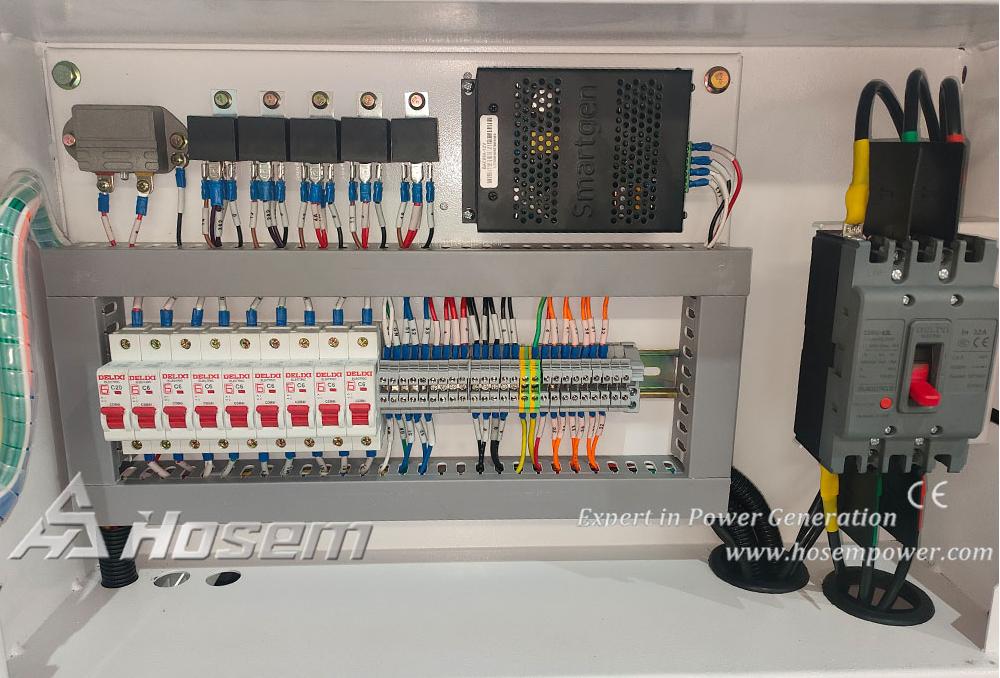

2. Equipped with the DEIF generator controller, it ensures smooth monitoring and control over the generator’s performance, including start/stop functions and safety alarms for optimal operation.
3. Low Noise Soundproof Canopy – With high-density insulation, the canopy ensures reduced noise levels, making it ideal for residential areas.
4. AVR-controlled alternator guarantees consistent voltage and frequency, protecting sensitive home appliances.
5. The light structure and lifting points allow quick relocation and installation, ideal for rental or mobile applications.
6. Built-in alarms and auto shutdown for low oil pressure, high water temperature, and overload, ensuring safety at all times.
Hosem Power provides factory-direct sales with a strong price advantage, giving customers the best 10kVA genset price in the market.
